Zapfwellenelement

P.T.O

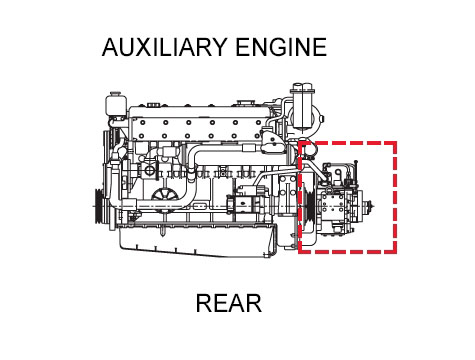

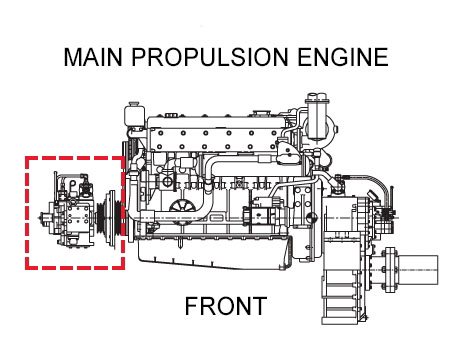

These hydraulic PTO can be mounted both on the front of the engine (on the vibration damper) and on the rear of the engine (on the flywheel).

Model
Models for propulsion engines: DPO-F087A DPO-F087B DPO-F087C DPO-F087D
Models for auxiliary engines : DPO-R087A DPO-R087B DPO-R087C DPO-R087D
APPLICATIONS: Generators, hydraulic pumps, winch, etc …

  • High-Tech
  • Durability
  • Easy operation and maintenance
  • Production of two independent axles in addition to the continuous rotation pulley
  • Perfect brake system
  • Oil cooler with anode mounted on console
  • Direct and easy installation
  • ISO 900 quality
Dont-i

TECHNICAL SPECIFICATIONS

Model Reduction Output Torque Left/Right Max. Entrance RPM Permissible Max Cooling water Engine Weight Power curve (See drwg)
MDPO-F0871:155 / 55 (kg.m)230 HP3000 rpm40 - 60POWER PLANT150 KGCURVE
MDPO-F0871:0,8555 / 55 (kg.m)169 KW3000 rpm40 - 60Auxiliary Engine165 KGCURVE

POWER TAKE OFF INSTRUCTION MANUAL

DIMENSIONS

Front view
Front view
Sideview
At sight

INSTALLATION

GENERAL USE

Type ALeft: pumpRight: roll

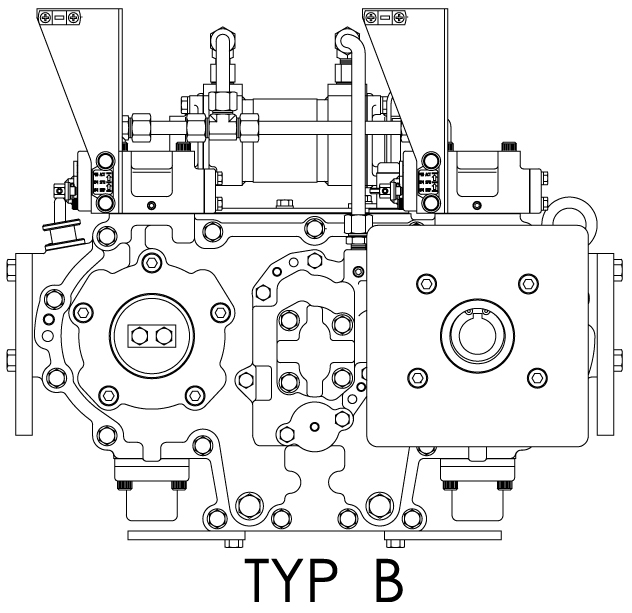

Type BLeft: RollRight: pump

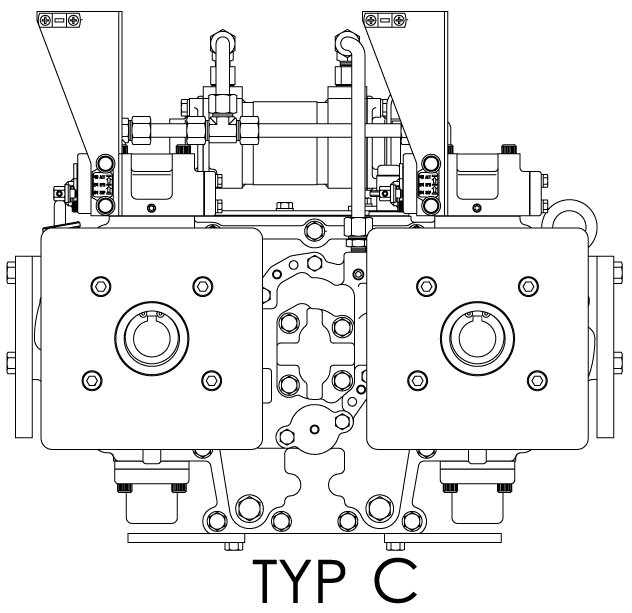

Type CLeft: pumpRight: pump

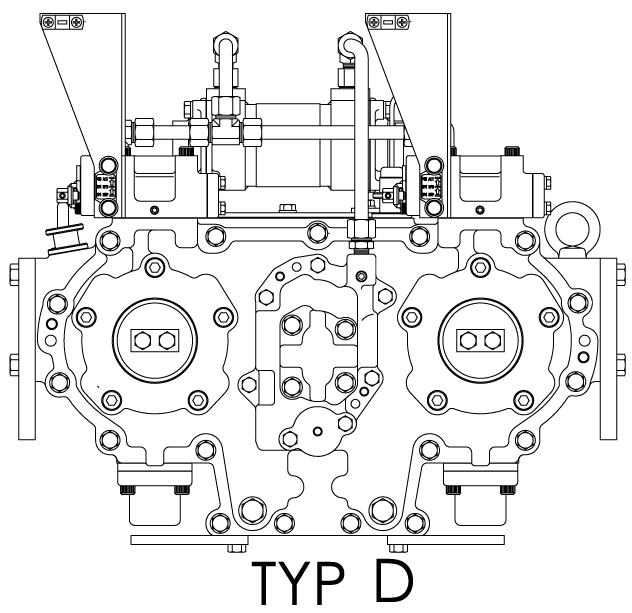

Type DLeft: RollRight: roll


Modelle
MODELS FOR PROPULSOR ENGINES: DPO-F087A DPO-F087B DPO-F087C DPO-F087D DPO-160
MODELS FOR AUXILIARY ENGINES: DPO-R087A DPO-R087B DPO-R087C DPO-R087D
GREATER USE ( CONNECTIONS ): GENERATORS - HYDRAULIC WINCHES - HYDRAULIC PUMPS

CHARACTERISTICS

  • High-Tech
  • Durability
  • Easy operation and maintenance
  • Production of two independent axles in addition to the continuous rotation pulley
  • Perfect brake system
  • Oil cooler with anode mounted on console
  • Direct and easy installation
  • ISO 900 quality
Dont-i

TECHNICAL SPECIFICATIONS

Model Reduction Permissible Max (rpm) Input Power Capacity/rpm Clutch Type Output Shaft Type Output Torque (kg.m) Output Max (rpm) Weight (Kg) Housing (SAE)
DPO 160 1 3.000 0.233 HP 0.166 KW 1Clutch 1Shaft 160 3.000 125 1.2

POWER TAKE OFF INSTRUCTION MANUAL

DIMENSIONS

Abmessungen DPO 160
Abmessungen DPO 160

PTO TYPE

Pulley Shaft Type
Pulley Pump Type
Housing Shaft Type
Housing Pump Type

INSTALLATION
