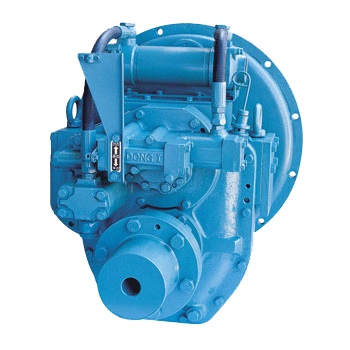

DMT90A

Reverse reduction type with hydraulically actuated multi disc clutches.
Cast-iron case, vertical off set and direct mounting.
Same torque capacity & ratio in both ahead and astern
Easy maintenance & robust design.
Precisely ground gear teeth for long life and smooth operating.
"Go home" function in emergency.
Various applications : for pleasure, light, medium and contiuous duty.
Strictly quality controled by complying with ISO 9001.
CCS

MARINE TRANSMISSION CATALOGUE

DOWNLOADS

Downloads

Dimension (PDF)

Dimension (CAD)

Mass elestic data

RATING (Continuous Duty)

Model	Reduction	Max. Torque (Kg,m)	Max. Input [rpm]	Power - rpm		1800rpm		2100rpm		2300		Dry weight(kg)
Model	Reduction	Max. Torque (Kg,m)	Max. Input [rpm]	Kw	Hp	Kw	Hp	Kw	Hp	Kw	Hp	Dry weight(kg)
DMT90A	1.61	87	3000	0.089	0.120	161	216	188	252	205	276	159
DMT90A	2.06	87	3000	0.089	0.120	161	216	188	252	205	276	159
DMT90A	2.45	87	3000	0.089	0.120	161	216	188	252	205	276	159
DMT90A	2.82	87	3000	0.089	0.120	161	216	188	252	205	276	159
DMT90A	3.12	87	3000	0.089	0.120	161	216	188	252	205	276	159
DMT90A	3.46	87	3000	0.089	0.120	161	216	188	252	205	276	159

STANDARD EQUIPMENT

SAE #3, 2, and SAE #1 bell housings .
Engine-matched Dual Stage Coupling .
Oil cooler Assembly
Mounting brackets(Plate Type for welding) .
Propeller shaft flange .
Control cable bracket and Clamp parts for connection of the push-pull cable .

OPTION

Trolling valve for slow speed navigation
Electric shifting valve

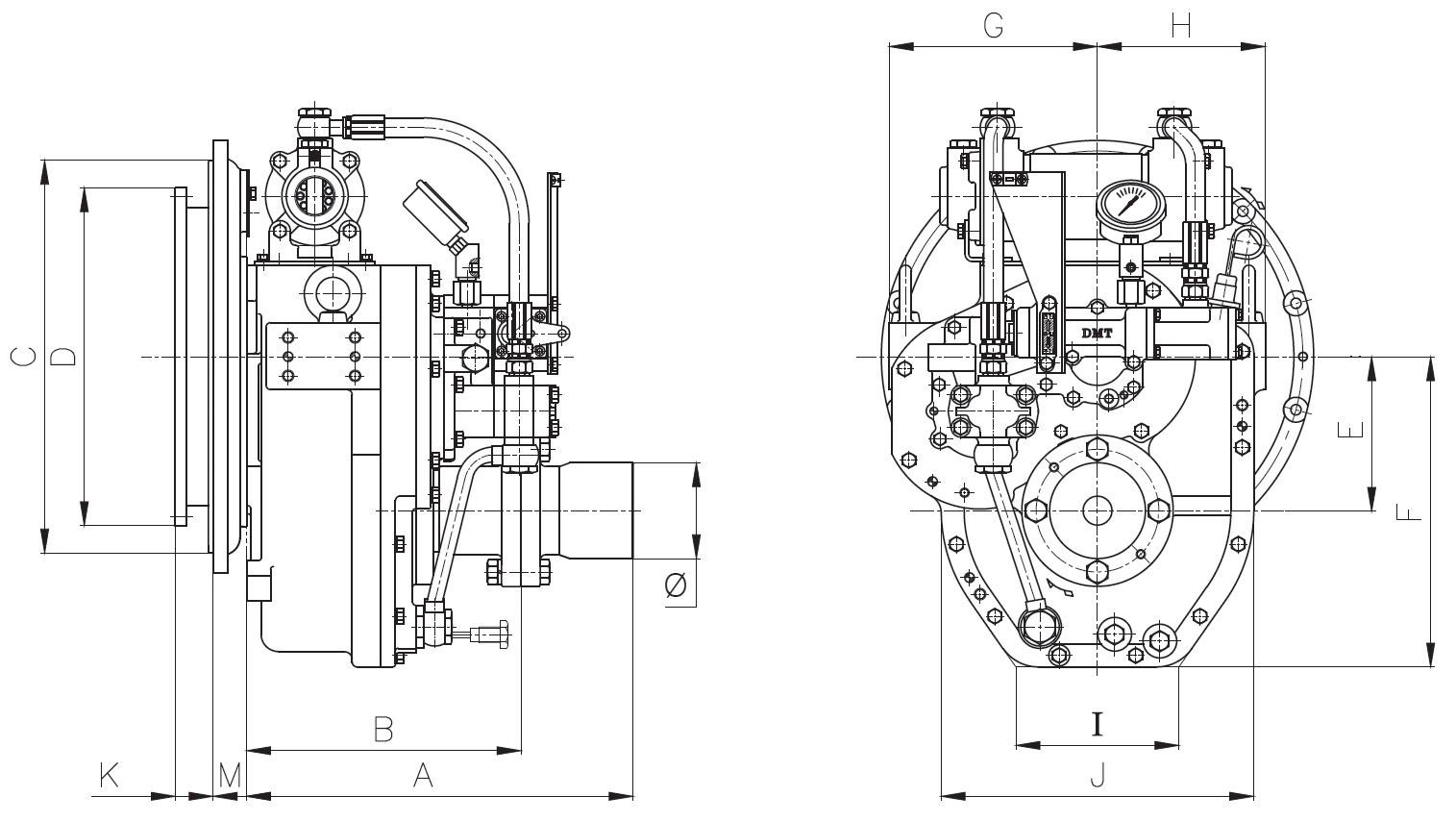

DIMENSION

Model	A	B	E	F	G	H	I	J	Ø
DMT90A	471	325	160	323	228	175	170	326	120

Model	Housing	Driving ring	C	D	M (1)	M (2)	K
DMT90A	SAE#1	14"	511	466	75	-	25
DMT90A	SAE#2	11.5"	447	325	35	-	39
DMT90A	SAE#3	11.5"	409	325	35	-	39
DMT90A	SAE#4	10"	361	314	50	-	53

APPLICATION BELL HOUSING

No	Housing	Driving Ring	K	M
No	Housing	Driving Ring	Standard	Rubber Block Type	Dual Stage Type	Centa Flexible Type
1	SAE#1	14"	25.4	-	75	-
2	SAE#2	11.5"	39.6	-	35	-
3	SAE#3	11.5"	39.6	-	35	-
4	SAE#4	10"	53.8	50	-	-
